NexGen Formworks manufactures and supplies scaffolding systems for residential, commercial, industrial and infrastructure construction.
HIGH-GRADE STEEL
Durable Construction
UP TO 24 kN
Prop Load Capacity
2.1–4.8 m
Adjustable Prop Range
UP TO 250 kg/m²
Platform Load Capacity
6 PRODUCTS
Complete Scaffolding Range
PAN INDIA
Supply & Support
NexGen Formworks manufactures and supplies scaffolding systems in India for construction access, working platforms and temporary support. Our range includes Cuplock scaffolding, H-Frame scaffolding, adjustable telescopic props, steel walkway and Jali platforms, adjustable jacks and Box Type Mini Span for residential, commercial, industrial and infrastructure applications.
Manufactured in Hyderabad, Telangana, NexGen supplies scaffolding products across India with product guidance and technical support.
Explore our range of scaffolding and support products for different construction access and temporary support requirements.
A versatile modular scaffolding system with a circular node connection that allows multiple components to be connected within a single section. Suitable for access and support applications across construction projects.
Material: High-Grade Steel (48.3 mm OD)
Vertical Sizes: 1.0 m, 1.5 m, 2.0 m, 2.5 m, 3.0 m
Horizontal Sizes: 0.8 m to 2.5 m
Finish: Primer Painting

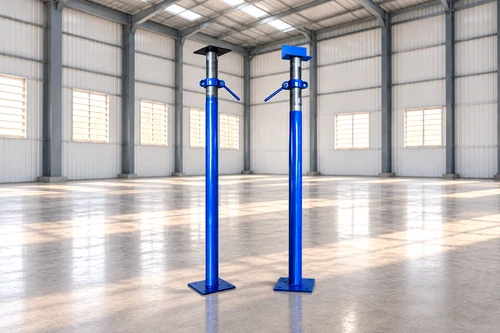

Heavy-duty adjustable steel props designed for temporary support of slabs, beams and other suitable formwork applications. The adjustable system supports required height positioning and fine adjustment.
Range: 2.1 m – 4.8 m
Tube Diameter: 60.3 mm / 48.3 mm
Load Capacity: Up to 24 kN
Material: Mild Steel
A rigid frame-based scaffolding system designed for suitable construction access and working-platform applications. Welded H-frames are connected using locking pins and suitable bracing arrangements.
Frame Structure: Welded H-Frame
Connection: Locking Pins
Standard Size: 2 m × 1 m
Finish: Primer Painting
Steel walkway platforms designed to provide suitable working access and stable movement across construction and scaffolding arrangements.
Material: MS Steel
Surface: Painted
Standard Width: 300 mm – 1200 mm
Load Capacity: Up to 250 kg/m²
Adjustable jack components designed for levelling scaffolding and providing height adjustment at the top or bottom of suitable structures. Available with suitable head configurations.
Stem Diameter: 32 / 36 / 40 mm
Adjustment Length: 450 / 600 / 750 mm
Head Type: Base Plate or U-Type Stirrup
Finish: Painted
Lightweight adjustable span products designed for suitable slab and beam support applications. The box-type arrangement provides a practical solution for strength, stability and handling at site.
Material: MS Square Pipe
Sizes: 2 × 2 m, 2 × 2.5 m
Specifications: 65 × 65 mm, 72 × 72 mm
Finish: Painted
Each NexGen product is designed for a different access, platform or support requirement.
| Product | Primary Use |
|---|---|
| Cuplock Scaffolding | Modular access, working platforms and support |
| H-Frame Scaffolding | Construction access and working platforms |
| Adjustable Telescopic Props | Temporary support for slabs, beams and formwork |
| Steel Walkway & Jali Platform | Working access and platform applications |
| Adjustable Jacks | Levelling and height adjustment |
| Box Type Mini Span | Slab and beam support applications |
Need help selecting the right product? Talk to our team
Selected scaffolding products are manufactured using high-grade steel or mild steel, depending on the system.
NexGen offers products with defined load capacities, including up to 24 kN for adjustable telescopic props and up to 250 kg/m² for steel walkway platforms, as applicable to the product.
Choose from Cuplock, H-Frame, adjustable props, walkway platforms, adjustable jacks and mini spans for different construction requirements.
Telescopic props and adjustable jacks provide height adjustment for applicable temporary support and levelling applications.
Steel scaffolding products are designed for repeated use with appropriate inspection, maintenance, handling and storage.
NexGen provides product guidance to help customers select suitable scaffolding products for their project requirements.
NexGen scaffolding products are suitable for a range of construction, industrial and infrastructure applications.
Apartments, villas and multi-storey buildings requiring temporary access and working platforms.
Office buildings, commercial structures, plastering and finishing works.
Factories, warehouses and industrial facilities requiring access and maintenance platforms.
Suitable access and support applications for bridges, roads and other infrastructure works.
Adjustable props, jacks and mini spans for applicable slab, beam and other formwork support requirements.
Temporary working platforms and access arrangements for suitable repair and maintenance activities.
NexGen Formworks manufactures scaffolding systems in Hyderabad, Telangana, and supplies products to construction projects across India.
Share your construction requirements with our team and get the right scaffolding solution for your application.
