Reusable formwork systems designed for bridge, tunnel, culvert, crash barrier, water tank and treatment plant construction, with practical assembly, dimensional accuracy and repeated use.
60 kN/m²
Concrete Pressure*
100+
Reuse Cycles*
18–24 kg/m²
System Weight*
12–200 mm
Panel Thickness Range*
20–30 Minutes
Assembly Time*
NexGen Formworks provides reusable infrastructure formwork solutions for specialized concrete construction applications. Our formwork systems are designed for suitable bridges, tunnels, culverts, crash barriers, water tanks, aquariums and treatment plant structures.
The system combines PP or polymer-based formwork panels, epoxy-coated MS steel frames and suitable connecting and alignment accessories to support accurate concrete dimensions, efficient handling and repeated construction use.
NexGen supports contractors, builders and project teams with reusable formwork solutions for infrastructure, transportation and water-related concrete structures across India.
Manufactured in Hyderabad · PAN India Supply · Technical Support · Custom Solutions for Your Project
Explore NexGen formwork solutions for different infrastructure and water-structure requirements.

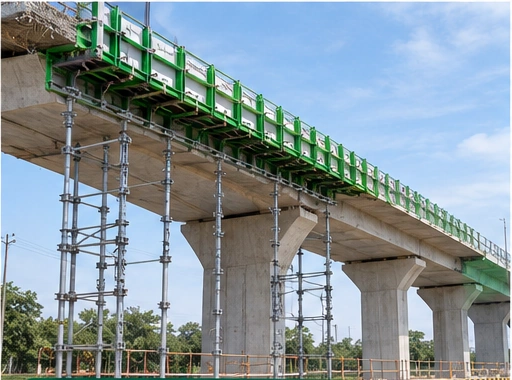

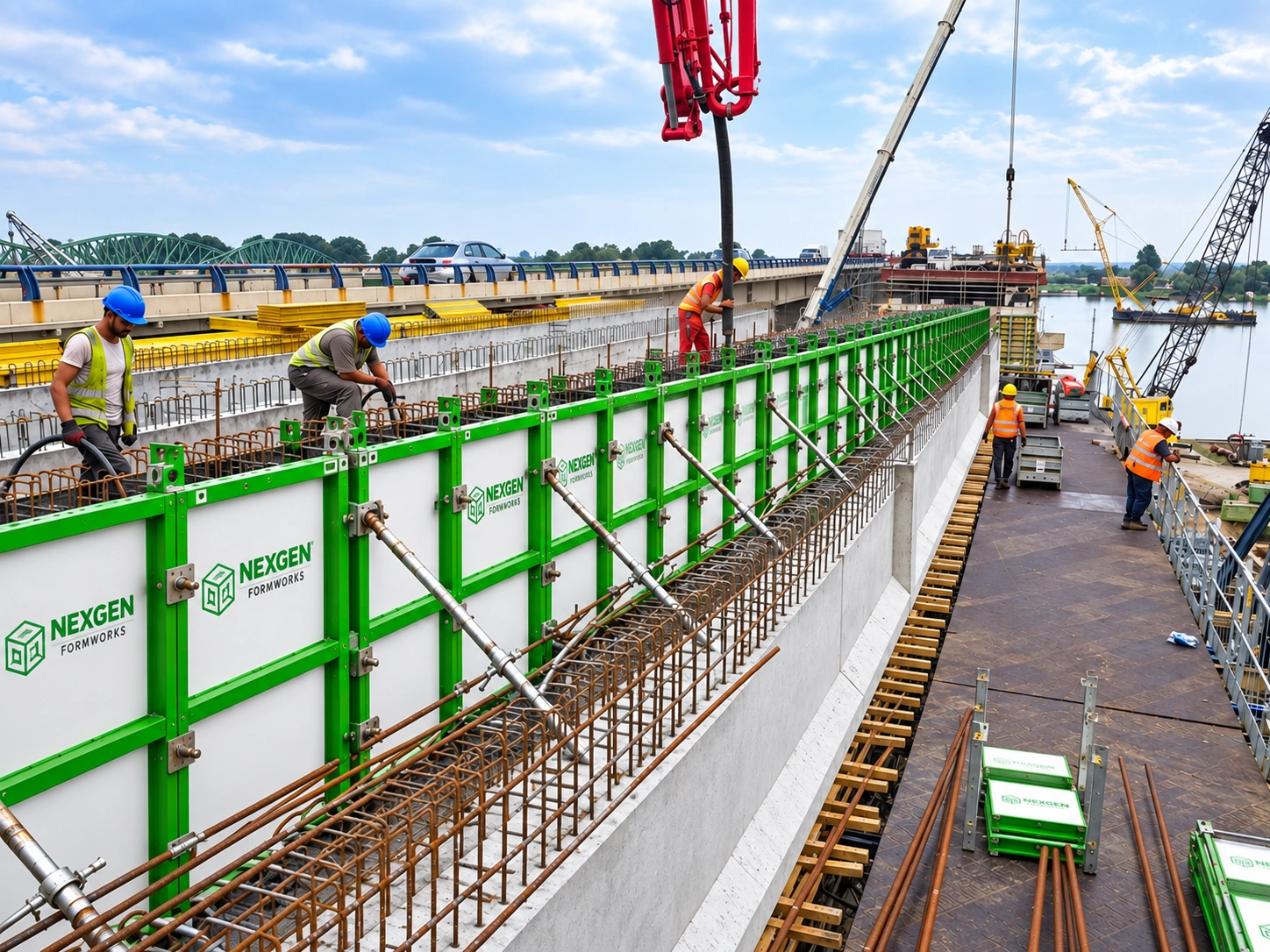

Formwork solutions for suitable concrete bridge construction applications, including selected bridge walls, piers and other structural elements based on project requirements.
Applications: Bridge walls • Bridge piers • Concrete bridge structures • Selected bridge construction elements
Get a Quote

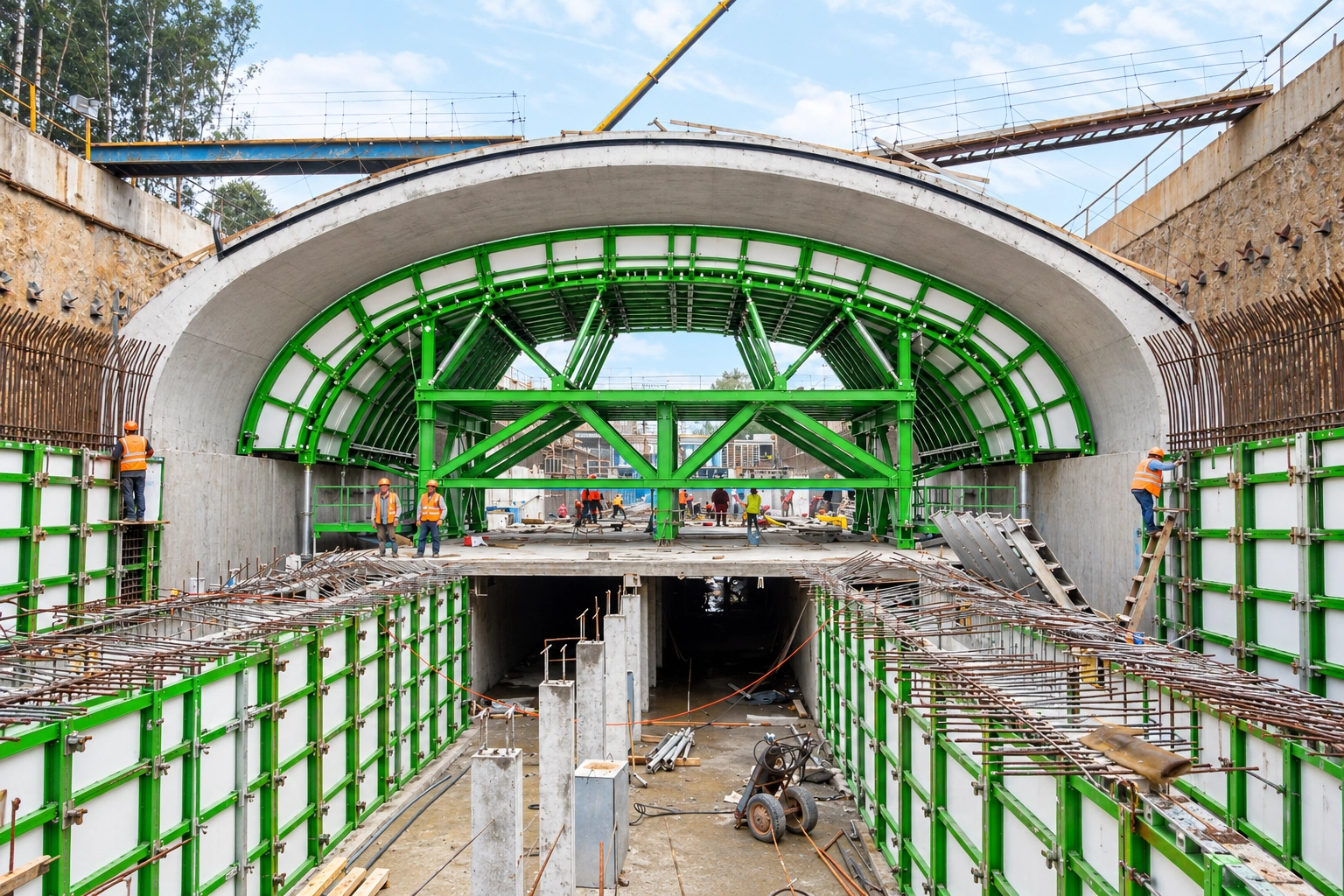

Reusable formwork systems for suitable tunnel construction applications requiring accurate concrete dimensions and consistent surface finish.
Applications: Tunnel walls • Underground concrete structures • Tunnel construction sections • Specialized infrastructure structures
Get a Quote
Modular formwork solutions for concrete culvert construction, including suitable box culvert and drainage-structure applications.
Applications: Box culverts • Drainage culverts • Road-crossing culverts • Concrete drainage structures
Get a Quote
Formwork solutions for producing concrete road and highway safety barriers with consistent dimensions and surface finish.
Applications: Highway crash barriers • Roadside concrete barriers • Median barriers • Concrete safety barriers
Get a Quote

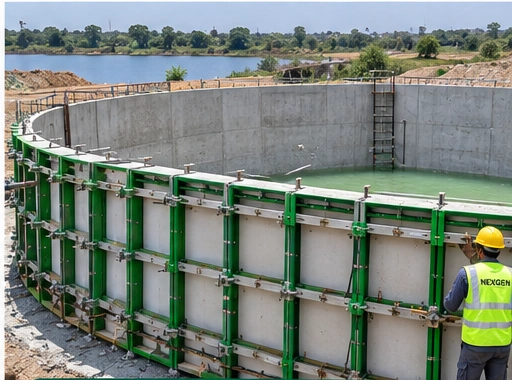

Reusable formwork for suitable water-retaining concrete structures requiring accurate dimensions and a consistent concrete surface.
Applications: RCC water tanks • Underground water tanks • Water-retaining structures • Concrete aquariums • Swimming pool structures
Get a Quote

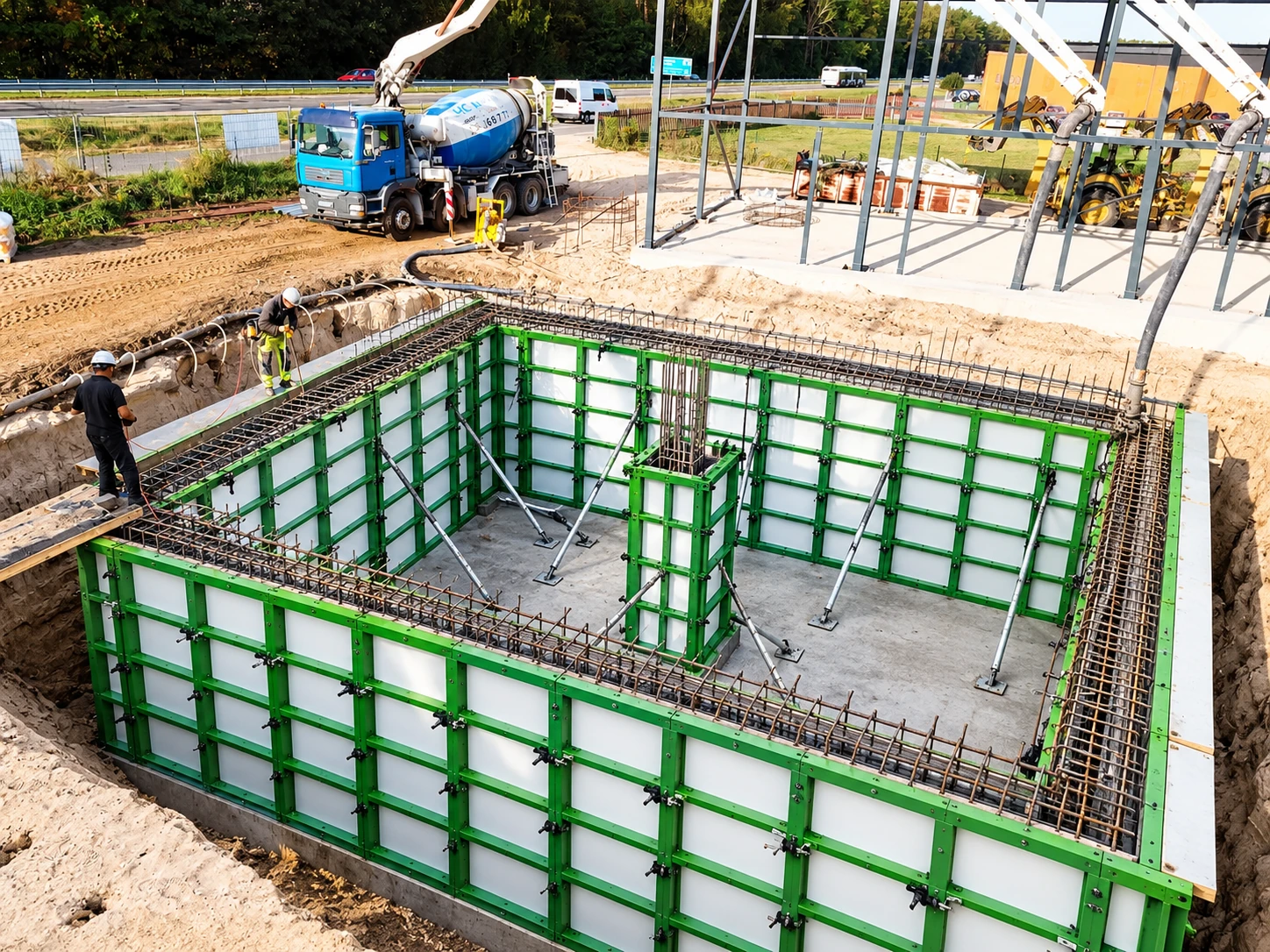

Formwork systems for suitable sewage treatment plant and water treatment concrete structures.
Applications: STP tanks • Sewage treatment plant structures • Water treatment plant structures • Concrete treatment tanks • Process-water structures
Get a QuoteThe following specifications represent the NexGen infrastructure formwork system. Final dimensions, configuration and assembly arrangements may vary according to the structure and project requirements.
| Specification | Value | Details |
|---|---|---|
| Panel Thickness | 12-200 mm | Project-specific rating |
| Frame Material | MS Steel Epoxy coated | Corrosion-resistant finish |
| Panel Material | Virgin/Recycled PP or Polymer Blend | Water-resistant, high durability |
| Weight per sqm | 18-24 kg | Manual handling possible; lighter than steel |
| Concrete Pressure | Up to 60 kN/m² | Complies with DIN 18218, ACI 347 |
| Reuse Cycles | 100+ | Requires proper maintenance/care |
| Precision | 1mm | Smooth concrete finish |
| Assembly Time | 20-30 minutes | For standard infra section; 2-3 workers |
| Recyclability | 100% | Eco-friendly end-of-life solution |
*Specifications depend on the applicable system configuration and project requirements.
Designed around the practical requirements of specialized concrete construction.
PP or polymer-based components resist moisture-related damage during regular use and storage.
Panel configurations can be selected according to the required structure, dimensions and application.
The system supports concrete pressure requirements of up to 60 kN/m², subject to the applicable configuration.
With a system weight of approximately 18–24 kg/m², the formwork supports practical handling and repositioning.
Designed for repeated construction use with proper cleaning, handling, storage and maintenance.
The formwork surface supports consistent concrete finishes and accurate structural dimensions.
Modular components and practical connection arrangements help support efficient installation.
NexGen provides assistance with product selection, configuration and project-specific formwork requirements.
The installation sequence may vary according to the structure and application. The basic process generally includes:
Confirm the structural drawings, dimensions, reinforcement arrangement and application requirements.
Ensure the working area, access and support arrangements are ready for formwork installation.
Place the required panels according to the structure and selected configuration.
Secure the panels using the applicable connection system and check dimensions, levels and alignment.
Complete reinforcement and formwork checks before placing and compacting the concrete.
Remove the formwork according to the approved procedure, then clean, inspect and prepare the components for reuse.
NexGen formwork systems are suitable for applicable concrete construction requirements across infrastructure and water-related projects.
Suitable bridge walls, piers and other concrete bridge elements.
Tunnel walls, underground structures and specialized concrete sections.
Box culverts, drainage culverts and road-crossing structures.
Concrete crash barriers, median barriers and roadside safety structures.
RCC water tanks, underground tanks, aquariums and swimming pool structures.
STP tanks, sewage treatment structures and water treatment plant components.
Explore genuine NexGen formwork applications across infrastructure and water-structure projects.
Hyderabad, Telangana
Hyderabad, Telangana
Vijayawada, Andhra Pradesh
Hyderabad, Telangana
Share your structure type, dimensions and project requirements with our team.
